Waste Motor Rotor Recycling Machine

Waste Motor Rotor Recycling Machine
Waste Motor Rotor Recycling Machine
Product Code : QY1000A
Brand Name : QIYI
Product Description

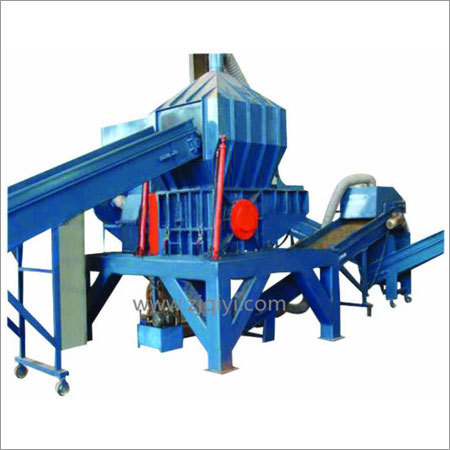

Waste Motor Rotor Recycling Machine

The equipment adopts a harmless way to recycle waste motor rotor, applying dry-type crusher, high-intensity magnetic roller, and air separator to crush and separate waste motor rotor, to deal with waste motor rotor that is difficult to be dismantled by human by special equipment to get renewable resources. The whole process is conducted under negative pressure.

The conveyor conveys the waste motor rotor selected by human into the crusher. Hard material, such as big shaft, bearings, and gear, are forbidden to mix the waste motor rotor. The crushed mixed material is conveyed to high-intensity magnetic roller to separate iron and ferrous metal (mixed material). The mixed material is conveyed to the grinder to grinder further to get smaller material. Then the mixture is conveyed to air separator to separate copper and non-metal. The crushing and separating process is equipped with pulse dedusting system, so the problem of dust emission is solved.

Technical Parameters:

Overall dimension (mm)

24000*6500*5000

Feeding dimension (mm)

100mm

Processing capacity

800-1200KG/H

Separation rate

97%

Dedusting rate

99%

Total power

134.8KW

Features:

1. The equipment has manual hydraulic operation system, which can solve that problem that the main shaft of waste motor rotor is difficult to crush.

2. Every part of the line is connected tightly. The crusher is strong and durable, security and reliable, and has minute vibration, low noise, and high efficiency.

3. The equipment is equipped with pulse dedusting system, which can solve the problem of dust overflowing. No dust overflowing won't lead to secondary pollution.
