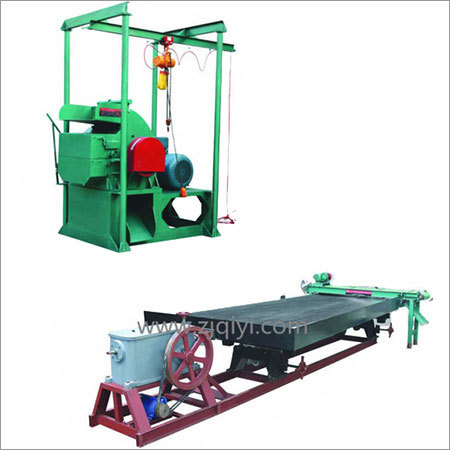

Motor Stator, Coils Recycling Machine

 Motor Stator, Coils Recycling Machine
Motor Stator, Coils Recycling Machine
Product Code : QY1000A
Brand Name : QIYI
Product Description

Water Type Motor Stator, Coils Recycling Machine

QY-1000 dry-type waste motor stator, coils recycling production line adopts harmless physical way to recycle resources. The manually selected waste motor stator and coils are conveyed to first crusher. Through the separation of high-intensity magnetic roller, iron and copper mixture are separated. Then copper mixture is conveyed to second crusher for further grinding to get smaller particles. Then the further grinded material is conveyed to air separator to sort out copper. Thereby considerable economic benefits are obtained. The equipment adopts negative pressure adsorption and is equipped with pulse dedusting system, so the dust caused in crushing and separation process can be easily catched and impact to the environment can be reduced effectively.

Technical parameters:

Overall dimension (mm)

24000*6500*5000

Processing capacity

600-1100KG/H

Separation rate

97%

Dedusting rate

99%

Total power

167KW

Features:

1.Controlled by PLC, the whole line runs in a coordinate way.

2.Simple structure, suitable layout, strong processing capacity, stable running, secure and durable, minute vibration, and high efficiency.

3.The first crusher is tear-type and its main shaft is of extreme hardness and of 500mm diameter which makes the crusher more forceful. The adoption of tiny cutting head reduces the cost of delicate components.

4.High-intensity magnetic separator can reach 95% separation rate. Air separator makes the product cleaner.

5.The dedusting rate of pulse dedusting system can reach 99%, refraining the dust from overflowing and avoiding secondary pollution.
